LS706III Mechanical Laser Receiver

Name: LS706III Mechanical Laser Receiver
Brand: Laisai
Price: 1 USD

China LS706III Mechanical Laser Receiver wholesale

Brand Name : Laisai

Model Number : LS706II

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pc per year

Delivery Time : 3.-5 work days after the goods are paid

Packaging Details : with standard packing way

Range : Wide range detect window

Display : High brightness LED display

Directions : 360º all directions receivable

Contact Now

LS706II Mechanical Laser Detector

LS706III Mechanical Laser Receiver

FEATURES

Wide range detect window, 360º all directions receivable
Able to receive laser beam of all kinds of rotary laser
High brightness LED display
Able to store data received last time
Low voltage power-off automatically
Able to be connected to the car battery with provided cable
Choose-able between clamp holder or magnet base
Optional LS707 display to extend the usage
Vibration-proof and rainproof

TECHNICAL DATA

Communication function

Location information output(Output to the controller)

Display

Five-level LED display

IP class

IP 66

Detecting radius

250m

Receiving angle

360°

Measuring accuracy

±3mm

Detecting window

246mm

Working temperature

-10℃～+50℃

Power supply

Built-in 6*C NI-MH battery pack

Size

376×80×149mm

Weight

3100g

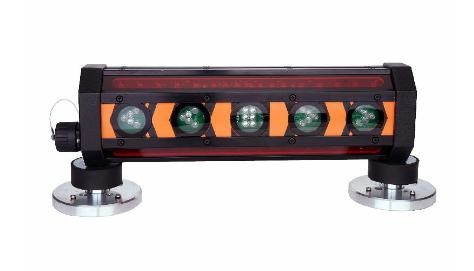

LS706III Mechanical Laser Receiver Images
